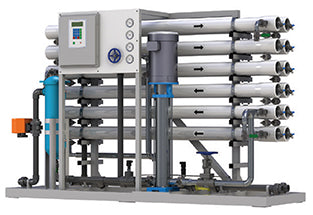

AXEON M2 Series Commercial Reverse Osmosis System

Call For Price

Description

The AXEON M2 Series Commercial Reverse Osmosis System is a high capacity platform designed for commercial and light industrial applications requiring dependable salt and dissolved solids reduction. Engineered to treat well water and surface water sources, the M2 Series is well suited for brackish water conditions with total dissolved solids up to 10,000 ppm.

Available in system capacities ranging from 12,000 to 36,000 gallons per day, the AXEON M2 Series delivers efficient permeate production using a high pressure pump and low energy reverse osmosis membrane elements. This combination provides reliable performance while maintaining lower operating costs for facilities with moderate to high water demand.

Each AXEON M2 Series system is equipped with an advanced computer controller that manages system operation and protection. Standard control functions include dual TDS monitoring, low pressure monitoring with alarm, pretreatment lockout, feed flush, and tank level input. Larger system configurations also include an additional digital flow monitor for enhanced system visibility.

All M2 Series models include a motorized feed valve, permeate sample ports, and a bag filter housing equipped with a 5 micron filter bag to provide effective pretreatment and system protection. The result is a compact, efficient reverse osmosis solution designed for consistent performance in commercial brackish water applications.

A range of optional upgrades is available for the AXEON M2 Series, including permeate flush, permeate divert, variable frequency drive control, chemical injection systems, and clean in place functionality, allowing the system to be configured to meet specific site and water quality requirements.

Specifications

Specifications
MODELS M2-4240 M2-6240 M2-8240 M2-10240 M2-12240
Design
Configuration Single Pass Single Pass Single Pass Single Pass Single Pass
Feedwater SourceA TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm TDS < 10,000 ppm
Standard Recovery Rate % 40–50 40–50 40–50 30–45 46–52
Rejection and Flow RatesD
Nominal Salt Rejection % 99.2 99.2 99.2 99.2 99.2
Permeate Flow (gpm / lpm) 8.30 / 31.4 12.50 / 47.3 16.70 / 63.2 20.80 / 78.7 25.00 / 94.6
Minimum Concentrate Flow Rate (gpm / lpm) 14.30 / 54.13 18.50 / 70.03 22.78 / 85.93 26.80 / 101.45 31.00 / 117.35
Maximum Feed Flow (gpm / lpm) 28 / 106 28 / 106 42 / 159 42 / 159 42 / 159
Minimum Concentrate Flow Rate (gpm / lpm) 6 / 23 6 / 23 6 / 23 6 / 23 6 / 23
Connections
Feed FNPT (in) 1.5 1.5 1.5 1.5 1.5
Permeate Tubing (in) 1 1 1 1.5 1.5
Concentrate FNPT (in) 1 1 1 1.5 1.5
CIP FNPT (in) 1 1 1 1 1
Membranes
Membranes Per Vessel 2 2 2 2 2
Membrane Quantity 8 12 16 20 24
Membrane Size 4040 4040 4040 4040 4040
Vessels
Vessel Array 2:2 2:2:2 3:3:2 3:3:2:2 3:3:2:2:2
Vessel Quantity 4 6 8 10 12
Pumps
Pump Type Multi-Stage Multi-Stage Multi-Stage Multi-Stage Multi-Stage
Motor HP 7.5 7.5 10 10 15
RPM @ 60Hz 3450 3450 3450 3450 3450
RPM @ 50Hz VFD at 60Hz VFD at 60Hz VFD at 60Hz VFD at 60Hz VFD at 60Hz
System Electrical
Standard Voltage + Amp Draw 220V, 60Hz, 3PH, 19.5AE 220V, 60Hz, 3PH, 19AE 220V, 60Hz, 3PH, 26.6AE 220V, 60Hz, 3PH, 26.6AE 220V, 60Hz, 3PH, 36AE
High Voltage Service + Amp Draw 220V, 50Hz, 3PH, 22.9AE
460V, 60Hz, 3PH, 9.7AE 		220V, 50Hz, 3PH, 22.9AE
460V, 60Hz, 3PH, 9.7AE 		220V, 50Hz, 3PH, 30.9AE
460V, 60Hz, 3PH, 12.9AE 		220V, 50Hz, 3PH, 30.9AE
460V, 60Hz, 3PH, 12.9AE 		220V, 50Hz, 3PH, 45AE
460V, 60Hz, 3PH, 18.5AE
System Dimensions
Approximate Dimensions F × L × W × H (in / cm) 31 × 100 × 64 / 787.4 × 2540 × 1626 31 × 100 × 64 / 787.4 × 2540 × 1626 31 × 100 × 64 / 787.4 × 2540 × 1626 31 × 100 × 64 / 787.4 × 2540 × 1626 31 × 100 × 64 / 787.4 × 2540 × 1626
Approximate Weight (lbs / kg) 1260 / 572 1350 / 611 1460 / 662 1550 / 703 1650 / 748
Test Parameters: 10,000 TDS Filtered (5-Micron), Dechlorinated, Municipal Feedwater, 65 psi / 4.50 bar Feed Pressure, 350 psi / 24.13 bar Operating Pressure, 77°F / 25°C, Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation.
A. Low temperatures and feedwater quality, such as high TDS levels will significantly affect system production capabilities and performance. Computer projections must be run for individual applications which do not meet or exceed minimum and maximum operating limits.
B. Product flow and maximum recovery rates are based on feedwater conditions as stated above. Do not exceed recommended permeate flow.
C. Varies with motor manufacturer.
D. Does not include operating space requirements.
Array Specifications
Model Vessel Array Vessel Size Vessel Quantity Membrane Size Membrane Quantity
M2-4240 2:2 4080 4 4040 8
M2-6240 2:2:2 4080 6 4040 12
M2-8240 3:3:2 4080 8 4040 16
M2-10240 3:3:2:2 4080 10 4040 20
M2-12240 3:3:2:2:2 4080 12 4040 24

Options and Upgrades

Options and Upgrades
Models: M2-4240, M2-6240, M2-8240
  • S-150 Expander BoardA
  • S-200 Computer ControllerA
  • S-200 pH MonitoringA
  • S-200 ORP MonitoringA
  • Variable Frequency DriveB
  • Filmtec® LCHR Membrane Elements
  • High Pressure Tank Switch
  • Hanna® BL 981411 pH ControllerA
  • Hanna® BL 982411 ORP ControllerA
  • Chemical Pump Outlet
  • Blending Valve
  • Permeate Divert Valve
  • Pump Pressure Relief ValveB
  • Caster Wheels

Drawings

M2 System Side and End View Dimensions
M2 System Top View Dimensions
Notes:
  • All dimensions are given in inches.
  • Model M2-12240 AXEON model shown.
M2 System Process Flow Diagram

Downloads

SPECIFICATION SHEET SYSTEM WARRANTY

Operating Limits

Operating Limits
Maximum Feed Temperature (°F / °C) 85 / 29 Maximum Turbidity (NTU) 1
Minimum Feed Temperature (°F / °C) 40 / 4 Maximum TDS (ppm) 0
Maximum Ambient Temperature (°F / °C) 120 / 49 Maximum TDS (ppm) 10,000
Minimum Ambient Temperature (°F / °C) 40 / 4 Maximum Hardness (gpg) 0
Maximum Feed Pressure (psi / bar) 85 / 6 Maximum pH (continuous) 11
Minimum Feed Pressure (psi / bar) 45 / 3 Minimum pH (continuous) 2
Maximum Operating Pressure (psi / bar) 400 / 28 Maximum pH (cleaning 30 minutes) 13
Maximum Feed Silt Density Index (SDI) < 3 Minimum pH (cleaning 30 minutes) 1
G. System pressure is variable due to water conditions. Permeate flow will increase at a higher temperature and will decrease at a lower temperature.

Features and Benefits

Features

Models: M2-4240, M2-6240, M2-8240

  • S-150 Computer Controller
  • LCD Backlit Display
  • Pre-Treatment Lockout
  • Tank Level Input
  • Hour Meter
  • Low and High Pressure Monitoring and Alarm
  • Dual TDS Monitoring
  • Feed Flush
  • Rejection Percentage

Models: M2-10240, M2-12240

  • S-200 Computer Controller
  • LCD Backlit Display
  • Pre-Treatment Lockout
  • Tank Level Input
  • Low and High Pressure Monitoring and Alarm
  • Hour Meter
  • Dual TDS Monitoring
  • Feed Flush
  • Digital Flow Meters (2)
  • Rejection Percentage
  • Recovery Percentage
  • A. Only available on the following models: M2-4240, M2-6240, M2-8240
  • B. Standard for all 50Hz systems

Models: M2-10240, M2-12240 (continued)

  • George Fischer® Motorized Valve
  • Feed Low Pressure Switch
  • Pump High Pressure Switch
  • Clean-In-Place (CIP) Ports
  • Victaulic® Style Fittings
  • Permeate Sample Ports
  • High Pressure Stainless Steel Piping and Fittings
  • White Powder Coated Aluminum Frame
  • Wooden Shipping Crate
  • AXEON Permeate and Concentrate Flow MetersA
  • Stainless Steel Concentrate Globe Valve
  • AXEON Pre-Filter 0–100 psi Panel Mounted Glycerin Filled Gauges
  • AXEON Pump Discharge 0–600 psi Panel Mounted Glycerin Filled Stainless Steel Gauges
  • Pentair® 5-Micron Filter Bag
  • Pentair® Bag Filter Housing
  • AXEON FRP-Series Membrane Housings (450 psi)
  • Vertical Multi-Stage 316L Stainless Steel Booster Pump
  • FilmTec® LCLE Membrane Elements
Benefits
  • Fully Equipped and Customizable
  • Skid Mounted
  • Components Easily Accessible
  • Pre-Plumbed, Wired, and Assembled
  • Individually Tested and Preserved
  • Low Operation and Maintenance Costs
  • Easy Maintenance and Servicing
  • 20% Less Energy
  • 1-Year Limited Warranty
