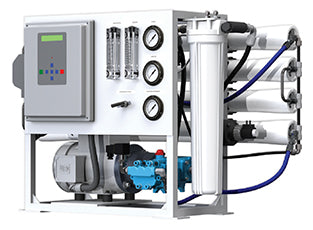

The AXEON S3 Series Compact Seawater Reverse Osmosis System is engineered for small scale seawater desalination applications requiring reliable performance in a compact footprint. Designed for installations where space is limited, the S3 Series supports production capacities ranging from 600 to 2,200 gallons per day, making it ideal for light commercial and specialty seawater applications.

The S3 Series features an innovative, space saving design that allows for flexible installation in a wide range of environments. Despite its compact size, the system is constructed with premium components to ensure dependable operation in corrosive seawater conditions.

Each AXEON S3 Series system is equipped with a 316L stainless steel plunger type high pressure pump designed for high performance and corrosion resistance. Additional standard components include a high grade, corrosion resistant aluminum frame, fiberglass membrane housings for durability, and a programmable computer controller with integrated monitoring and control functions.

Compact, durable, and engineered for seawater service, the AXEON S3 Series provides efficient desalination performance in a small footprint reverse osmosis platform.

Features and Benefits

S-150 Computer Controller
- LCD Backlit Display
- Pre-Treatment Lockout
- Tank Level Input
- Low and High Pressure Monitoring and Alarm
- Permeate TDS Monitoring
- Hour Meter
- Feed Flush
High Rejection Seawater Membranes
AXEON FRP-Series Membrane Housings
AXEON 5-Micron Sediment Pre-Filter
Pentair® Single O-Ring Cartridge Housing
Permeate and Concentrate Flow Meters

GF® Motorized PVC Valve
0–100 psi 316L SS Glycerin-Filled Pre-Filter Outlet Pressure Gauge
0–1500 psi 316L Stainless Steel Concentrate Pressure Gauge
AXEON 316L Stainless Steel Needle Valve
316L Stainless Steel Feed Low Pressure Switch
316L Stainless Steel Pump High-Pressure Switch
Pressure Relief Valve
Pressure Regulator
CAT® 316L High-Pressure Pump
TEFC Motor with Thermal Motor Protection
White Powder Coated Aluminum Frame
High-Pressure 316L Stainless Steel Tubing and Fittings
High-Pressure Hose with Reusable Stainless Steel Fittings

Fully Equipped and Customizable
High Quality Components
Individually Tested and Preserved
Low Operation and Maintenance Costs

Easy Maintenance and Servicing
Pre-Plumbed, Wired and Assembled
1-Year Limited Warranty

Specifications

MODELS	S3-1125	S3-2125	S3-3125	S3-4125
Design
Configuration	Single Pass	Single Pass	Single Pass	Single Pass
Feedwater Source^A	TDS < 35,000 ppm	TDS < 35,000 ppm	TDS < 35,000 ppm	TDS < 35,000 ppm
Standard Recovery Rate %	10	20	25	36
Rejection and Flow Rates^B
Nominal Salt Rejection %	99	99	99	99
Permeate Flow Rate (gpm / lpm)	0.41 / 1.55	0.83 / 3.14	1.25 / 4.73	1.52 / 5.75
Minimum Concentrate Flow Rate (gpm / lpm)	4.20 / 15.90	4.20 / 15.90	4.20 / 15.90	4.20 / 15.90
Connections
Feed FNPT (in)	1/2	1/2	1/2	1/2
Permeate Tubing (in)	3/8	3/8	3/8	3/8
Concentrate Tubing (in)	3/8	3/8	3/8	3/8
Membranes
Membranes Per Vessel	1	1	1	1
Membrane Quantity	1	2	3	4
Membrane Size	2540	2540	2540	2540
Vessels
Vessel Array	1	1:1	1:1:1	1:1:1:1
Vessel Quantity	1	2	3	4
Pumps
Pump Type	Plunger	Plunger	Plunger	Plunger
Motor HP / kW	2.50 / 1.85	2.50 / 1.85	2.50 / 1.85	2.50 / 1.85
RPM @ 60Hz (50 Hz)	1725 / 1450	1725 / 1450	1725 / 1450	1725 / 1450
System Electrical
Standard Voltage + Amp Draw	220VAC, 1PH, 11.9A^C	220VAC, 1PH, 11.9A^C	220VAC, 1PH, 11.9A^C	220VAC, 1PH, 11.9A^C
System Dimensions
Approximate Dimensions^D L x W x H (in / cm)	45.625 x 18 x 26.75 / 115.9 x 45.7 x 67.9	45.625 x 18 x 26.75 / 115.9 x 45.7 x 67.9	45.625 x 18 x 26.75 / 115.9 x 45.7 x 67.9	45.625 x 18 x 26.75 / 115.9 x 45.7 x 67.9
Approximate Weight (lbs/Kg)	145 / 65.77	155 / 70.31	165 / 74.84	175 / 79.38

Test Parameters: 35,000 TDS filtered (5-micron), dechlorinated, municipal feedwater, 45 psi / 3.1 bar feed pressure, 850 psi / 58.61 bar operating pressure, 77°F / 25°C, recovery as stated, 7.0 pH. Data taken after 60 minutes of operation.

A. Low temperatures and feedwater quality, such as high TDS levels will significantly affect the system’s production capabilities and performance. Computer projections must be run for individual applications which do not meet or exceed minimum and maximum operating limits for such conditions.

B. Product flow and maximum recovery rates are based on feedwater conditions as stated above. Do not exceed recommended permeate flow.

C. Varies with motor manufacturer.

D. Does not include operating space requirements.

Array Specifications

Model	Vessel Array	Vessel Size	Vessel Quantity	Membrane Size	Membrane Quantity
S3-1125	1	2540	1	2540	1
S3-2125	1:1	2540	2	2540	2
S3-3125	1:1:1	2540	3	2540	3
S3-4125	1:1:1:1	2540	4	2540	4

Operating Limits

Maximum Feed Temperature (°F / °C)	85 / 29	Maximum Turbidity (NTU)	< 1
Minimum Feed Temperature (°F / °C)	41 / 5	Maximum Free Chlorine (ppm)	0
Maximum Ambient Temperature (°F / °C)	120 / 49	Maximum Hardness (gpg)	0
Minimum Ambient Temperature (°F / °C)	40 / 4	Maximum pH (continuous)	11
Maximum Feed Pressure (psi / bar)	60 / 4	Minimum pH (continuous)	2
Minimum Feed Pressure (psi / bar)	15 / 1	Maximum pH (cleaning 30 minutes)	13
Maximum Operating Pressure (psi / bar)	1000 / 69	Minimum pH (cleaning 30 minutes)	1
Maximum Feed Silt Density Index (SDI)	< 3
