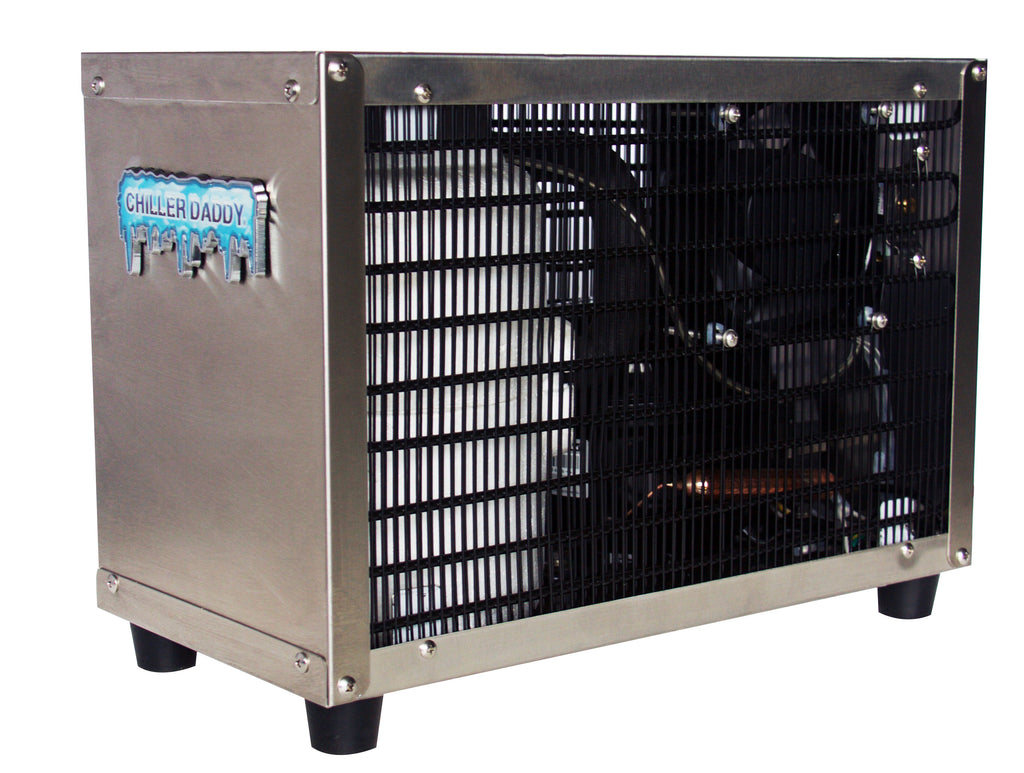

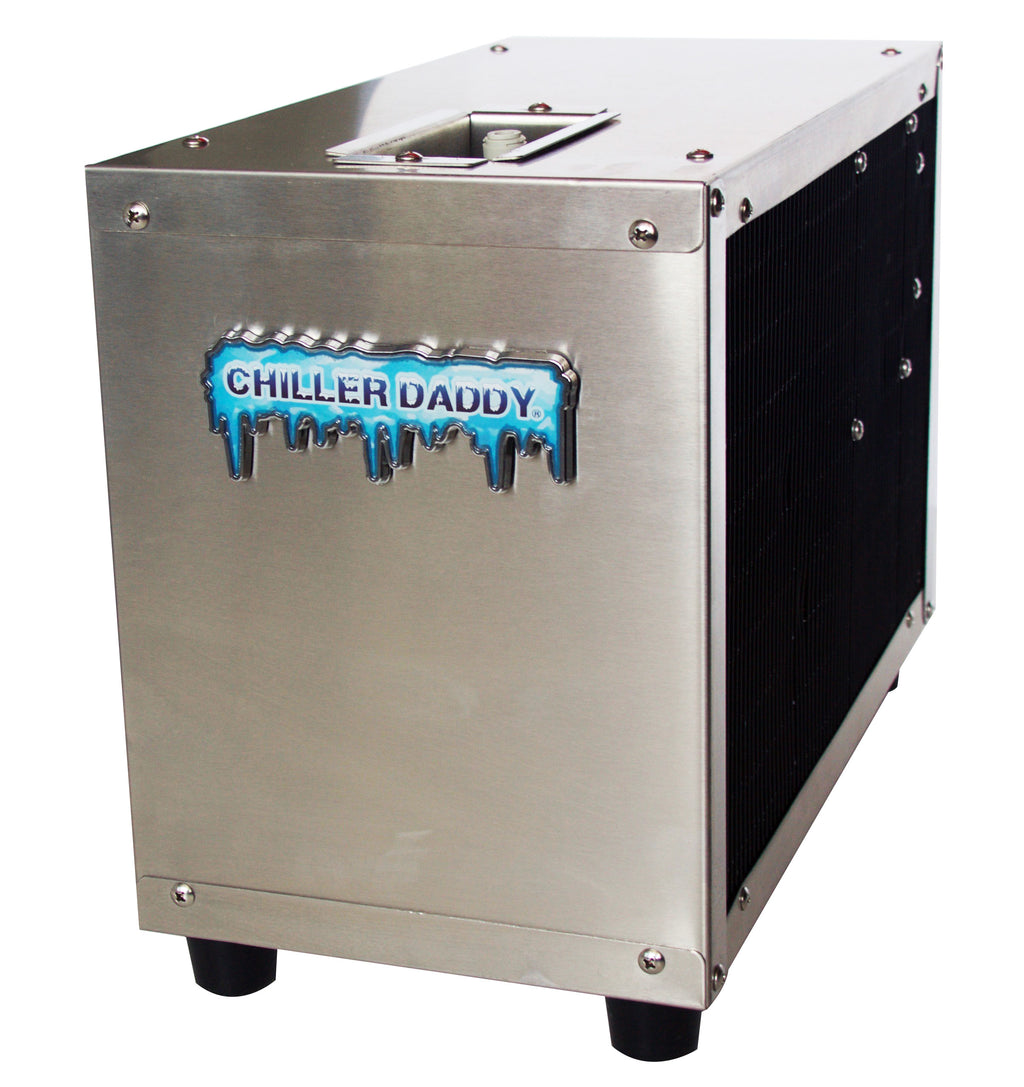

Chiller Daddy ® CHL-750XL
Undersink Water Chiller Specifications
| Model #: | CHL-750XL |
| Product Type: | Undersink Water Chiller for Residential and Office Use |
| Product Dimensions: | L: 16" x W: 8" x H: 13.38" (406x203x340) |
| Product Weight: | 23.75 lbs (10.8 KG) |
| Shipping Dimensions: | L: 20.87" x W: 13" x H: 16.93" (530x330x430) |
| Shipping Weight: | 27.25lbs (12.5 KG) |
| Product Color: | Appliance Grade Designer Brushed 304 Stainless Steel Cabinet |
| Application: | Chills Drinking Water for Residential and Office Use. Connects to RO Reverse Osmosis and Filtered Drinking Water Systems. |
| Warranty: | 1-Year Non-Transferable Limited Manufacturer's Warranty * |
| Power: | 110 Volts 60Hz 3 Prong 72" Grounded Cord Attached 1.8A 140W - Motor-Compressor Thermally Protected |
Certifications:
|
Conforms to UL Standard 399. Certified to CSA Standard C22.2 #s 60335-2-24 & 60335-1 |
| Refrigerant Type: | R-134a 54g (1.9oz) Environmentally Friendly |
| Inlet Pressure: | 15~100psi (0.10~0.69MPa) Optional Pressure Limiter Available For Use If Installation is Not On a Reverse Osmosis RO System or Over 100 PSI. 30-50 psi (factory preset to 40 PSI) Pressure Limiter Allows Adjustable Flow Rate to the Faucet. |
| Cold Water Output: | 1.75 Gallons Per Hour (6.6 Liters 6.6L/H (<10C) ) |
| Tank: | SUS304 Stainless Steel 0.8 Gallon (3L) |
| Connections: | 1/4" O.D. Stainless Steel Tubes In & Out Drain Cap is G 1/4" BSPP Thread Stainless Steel |
| Cold Water Thermostat Temperature Range: | 42 - 54°F Adjustable Thermostat - Factory Preset for Normal Use ** |
| Shipping: |
924 Per 40'HQ Container Non-Palletized |
| UPC#: | 850003338149 |
