Description

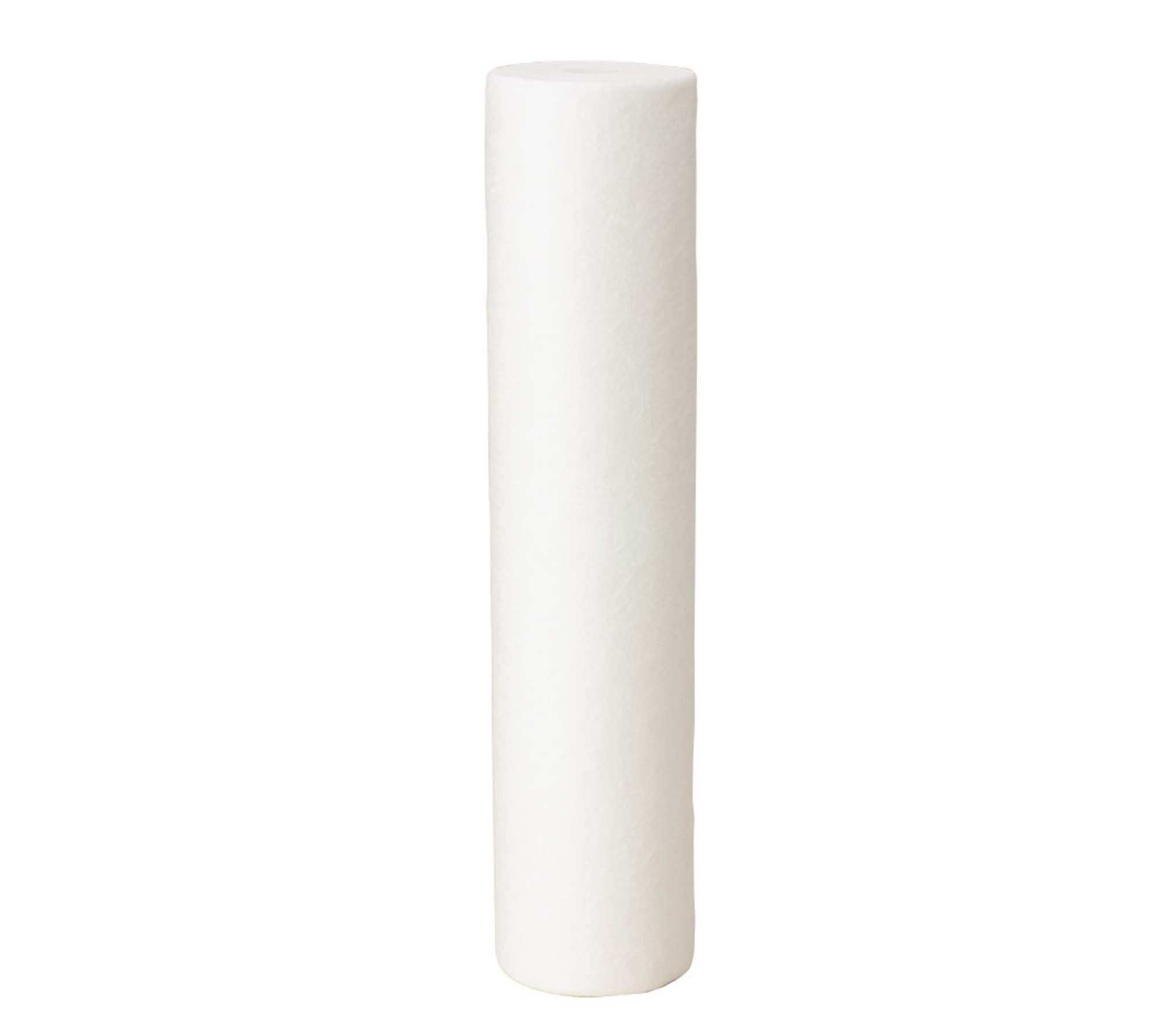

The Hydronix SDC-45-2020 filter has true multi-stage depth filtration integrated into its design. Utilizing our technology to create 4 separate layers of micron filtration, our outside-in flow allows the outer layer to trap the larger sized particles, resulting in a much lower pressure drop compared to conventional filters. Trapping various sized particles layer-by-layer, our SDC filters provide a much higher dirt holding capacity than standard spun polypropylene and string wound cartridges.
| Manufacturer/Brand: | Hydronix |
| Filter Series: | SDC |
| Part Number: | SDC-45-2020 |
| Type: | Sediment - Spun |
| Material(s): | Polypropylene |
| Size: | 4 1/2 x 20 Inches (114 x 508 mm) |
| Micron Rating: | 20 (Nominal) |
| Pressure Loss: | 1 psi @ 20.0 GPM |
| Validation: | NSF42 |
| Made in: | Taiwan |
| Specifications Sheet: | Hydronix SDC Series Specs |
